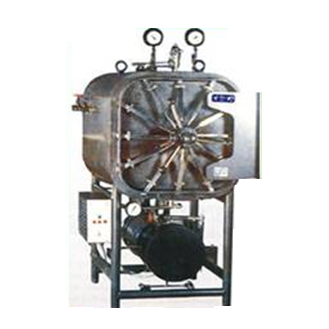

Inner chamber is made of SS 304 grade and jacket is made out of rolled steel. Single door made of rolled SS steel sheet has radial locking system. All units are hydraulically tested up to 40 PSI. The space between outer cover made of thick rolled steel sheet and the steam jacket is filled with glass wool or heating blanket to minimize thermal losses. Boiler is made of thick S.S. Sheet and is located under the sterilizer. It is fitted with water level indicator, safety valve, pressure gauge, and water inlet and drain valves. Unit is fitted with low water cut off device and automatic pressure control device. All rectangular sterilizer are fitted with SELF LOCKING SAFETY DOOR device. The door cannot be opened when chamber is under pressure. Two separate valves are provided for evacuating steam from inner chamber and jacket as and when desired. Fitted with a digital temperature controller and automatic vacuum breaker. To work on 440 volts, 3 phase A.C. supply.
Triple walled with steam jacket and separate boiler, Sterilization cycle is controlled by multiport valves, other specification is same as per ISI/CE/BSI standard.The unit is fitted with all standard accessories.
